Barrier-free KIOSK

The IMU Barrier-Free Kiosk is a government-certified, reliable solution. It offers
uncompromised performance at an affordable price, all while fully complying with
digital accessibility guidelines for people with disabilities.

WHY IMU KIOSK

Why Choose IMU Barrier-Free Kiosk?

  • Superior Durability
    Maximizing product efficiency
    through years of technical know-how.
  • Reasonable Price
    Smart design: Maintaining high
    performance while minimizing costs.
  • Flexible Installation
    Fits any store layout (Desk type / Stand type)

Guaranteed Accessibility Interface:
Convenient down to the last button.

The IMU Barrier-Free Kiosk is designed to ensure easy access and usability
for everyone, including persons with disabilities and the socially vulnerable.
Leveraging IMU’s proprietary technology, we have maximized usability through
specialized features such as Braille support, tactile keypads,
and voice guidance via audio jacks.

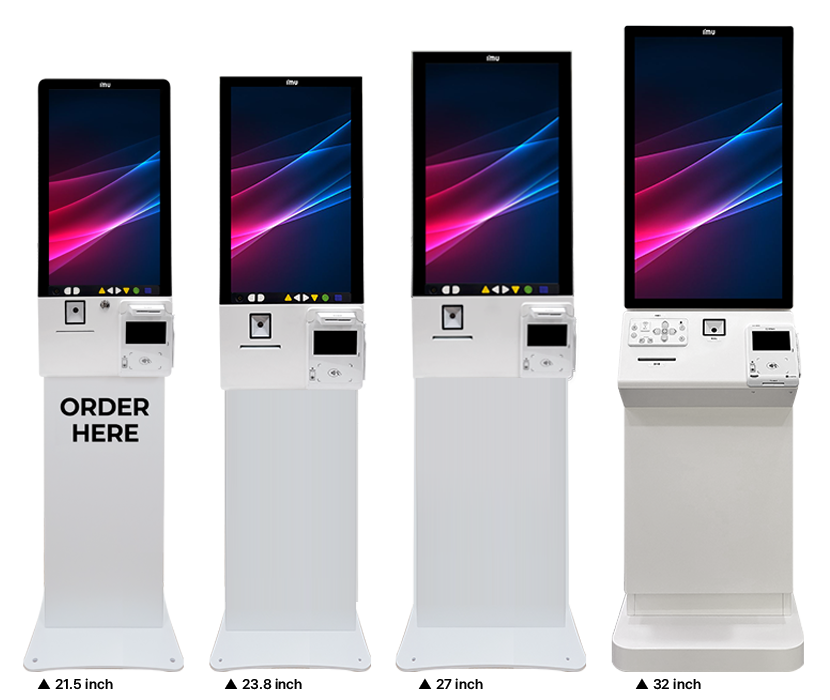

Various sizes to fit your space

Choose the kiosk size that best suits your installation environment and
operational needs, from small shops to large-scale facilities.

IMU KIOSK LINEUP

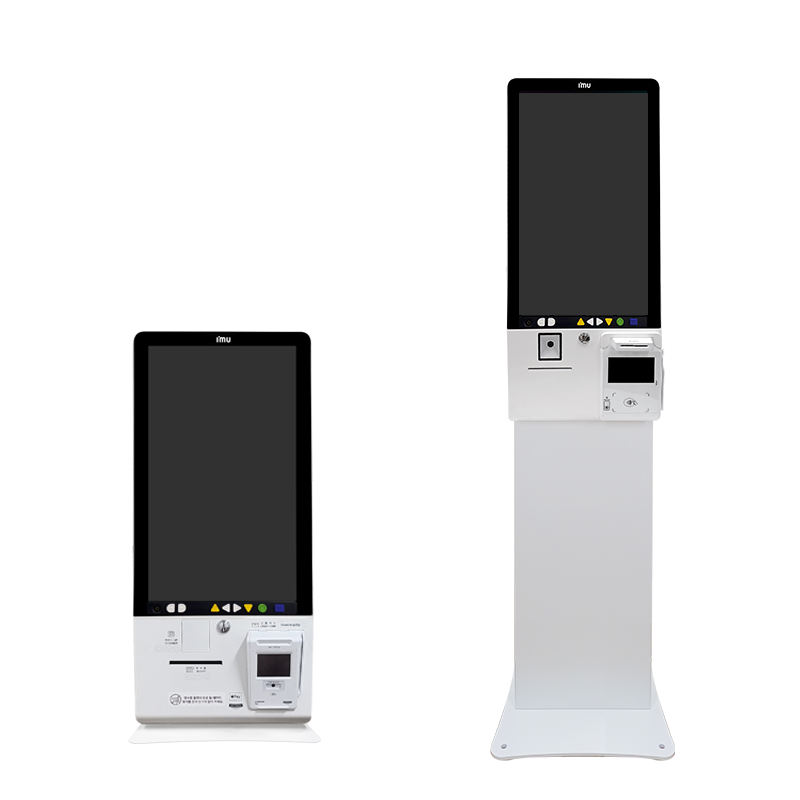

21.5 inch
IMU 21.5inch Barrier-free KIOSK T6B-21
HD
Resolution FHD 1080 x 1920 / 9:16 Ratio
☀
Brightness 300 cd/m²
T
Installation Type Desk type / Standing type

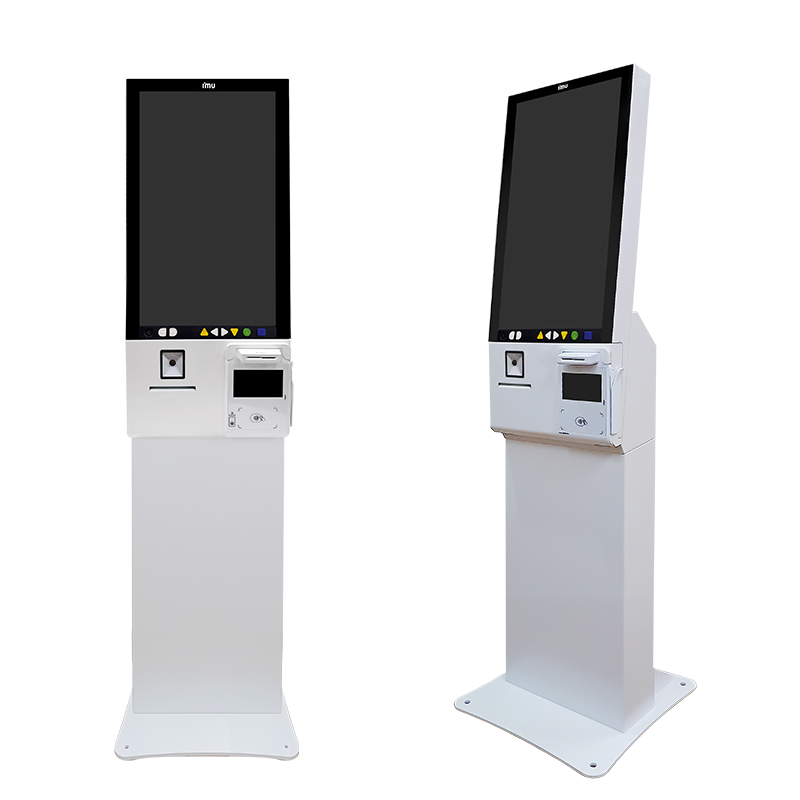

23.8 inch
IMU 23.8inch Barrier-free KIOSK T6B-24
HD
Resolution FHD 1080 x 1920 / 9:16 Ratio
☀
Brightness 250 cd/m²
T
Installation Type Desk type / Standing type

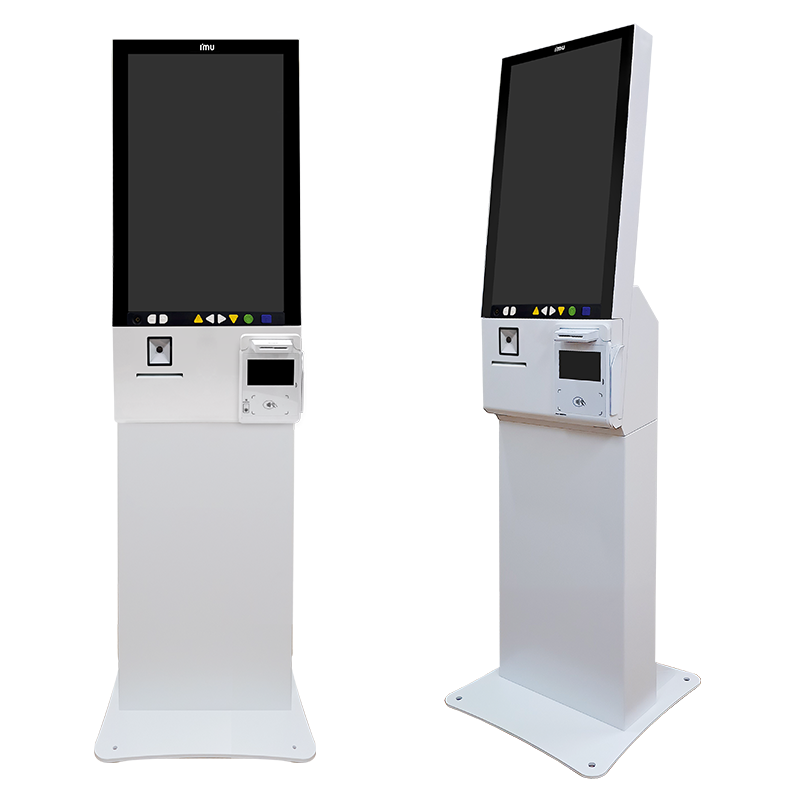

27 inch
IMU 27inch Barrier-free KIOSK T6B-27
HD
Resolution FHD 1080 x 1920 / 9:16 Ratio
☀
Brightness 300 cd/m²
T
Installation Type Standing type

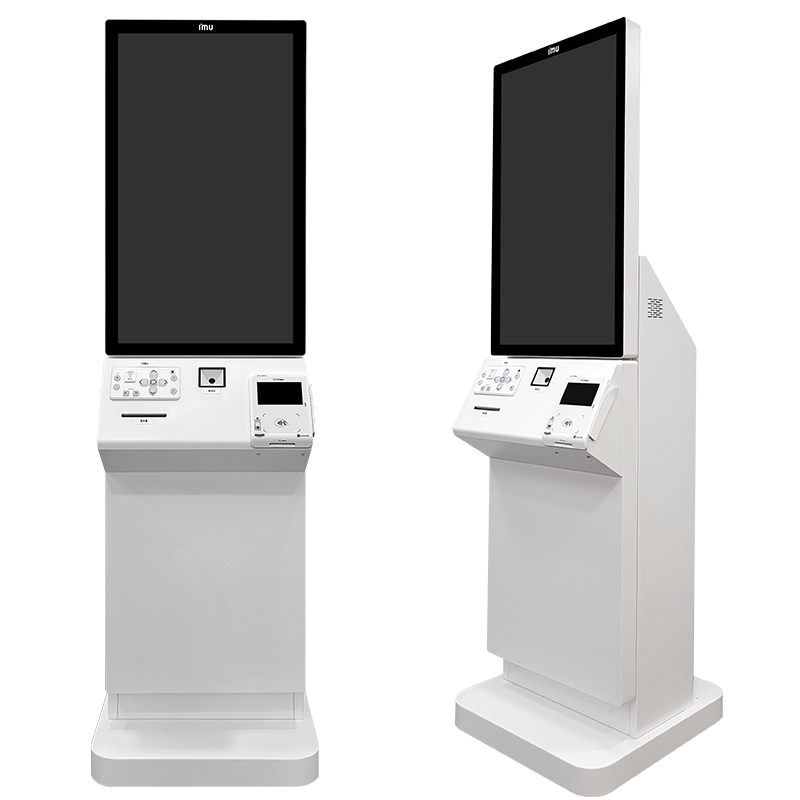

32 inch
IMU 32inch Barrier-free KIOSK T6B-32
HD
ResolutionFHD 1080 x 1920 / 9:16 Ratio
☀
Brightness 400 cd/m²
T
Installation Type Standing type

User-Centric Design & Features

Wheelchair Mode

Lowered Ordering Mode for Wheelchair Users

High Contrast Mode

High contrast and magnification modes designed
for seniors and users with low vision

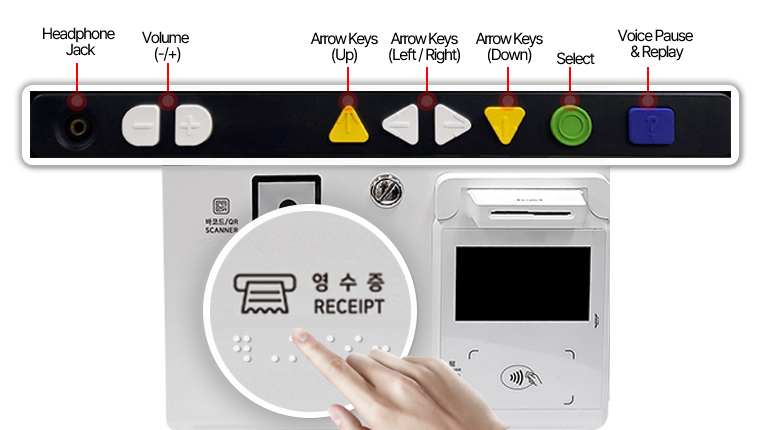

Braille & Tactile Keypad

Braille guidance and keypad support for visually impaired users.

SPECIFICATION

  • Intel® J6412
    Intel® N97 / N95
    CPU
  • 4GB
    MEMORY
  • 128GB
    SSD
  • Windows 10 IoT
    Windows 11 IoT
    OS

Various Peripheral Options

Scanner

Fast & Accurate 1D/2D Scanner

Receipt Printer

High-Quality Thermal Printer
200mm/sec max.

Built-in printer optimized for various business environments.

Label, Ticket, and Laser Printers Can be built into the kiosk stand (Optional)

Various Installation Types

Select from various configurations to suit your store environment.

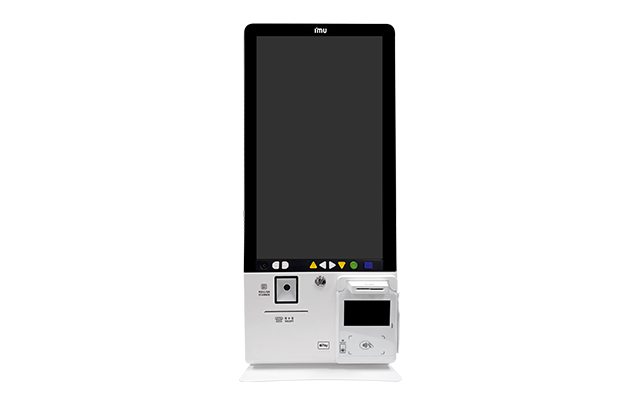

Desk Type

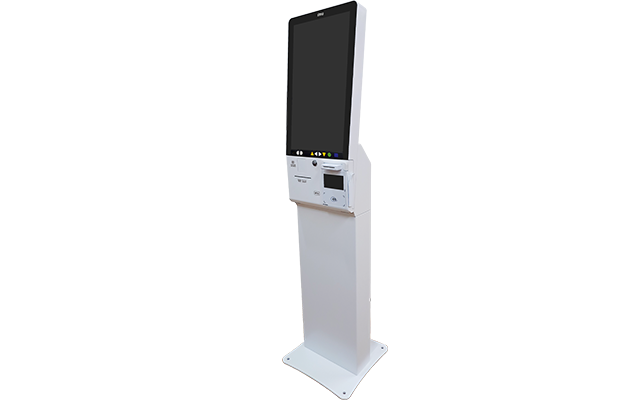

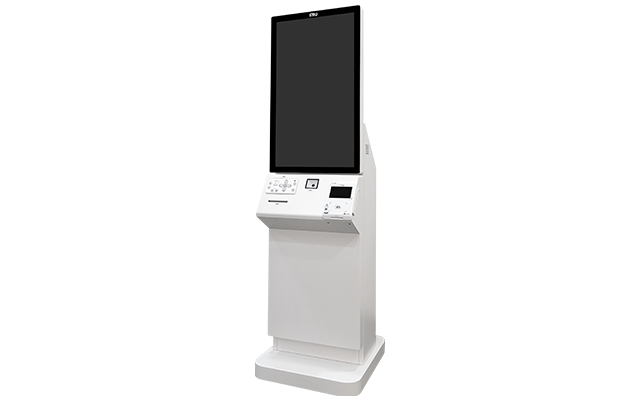

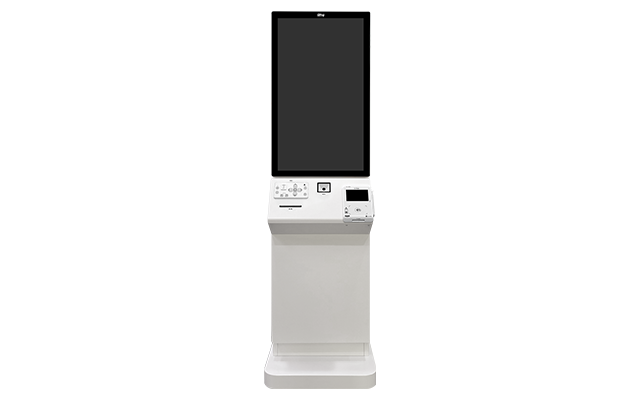

Stand Type

SOLUTION

CONVENIENT MULTI-KIOSK SOLUTION!

  • Convenient and user friendly

    • Easy for anyone to use
    • While looking at the menu image a customer can order, pay, and the order is complete
    • Customers have the option to add toppings or additional menu items

  • Brand differentiation to drive sales

    • Custom menu images

  • Mobile services

    • UP CLOUD
      Menu registration/setup and sales inquiries through a real-time management APP
    • SMART ORDER
      Mobile “pre-order service” (QR ordering for the disabled)

FIELD OF APPLICATION

Application Areas

Customized solutions for your business, suitable for installation in any industry.

  • IMU KIOSK T6B in cafe

    Cafe

  • IMU KIOSK T6B in restaurant

    Restaurant

  • IMU KIOSK T6B in cafeteria

    Cafeteria

  • IMU KIOSK T6B in kids cafe

    Kids Cafe

  • IMU KIOSK T6B in rest area

    Rest Area / Food Court

  • IMU KIOSK T6B in bakery

    Bakery

  • IMU KIOSK T6B in golf course

    Golf Course

  • IMU KIOSK T6B in hospital

    Hospital

  • IMU KIOSK T6B in pharmacy

    Pharmacy

  • IMU KIOSK T6B in bank

    Bank

  • IMU KIOSK T6B in school

    School

  • IMU KIOSK T6B in study cafe

    Study Cafe

  • IMU KIOSK T6B in internet cafe

    Internet Cafe

  • IMU KIOSK T6B in hotel

    Hotel / Lodging

  • IMU KIOSK T6B in sauna

    Sauna / Spa

  • IMU KIOSK T6B in parking lot

    Parking Lot

  • IMU KIOSK T6B in theme park

    Theme Park

  • IMU KIOSK T6B in cinema

    Cinema / Theater

Specifications

T6B-21
System
System
Processor
Intel® Processor N Series (Fanless)
Storage
2.5" SATA III SSD 128GB (Max. 512GB, optional)
Memory
8GB SO-DIMM
DDR4 3200MHz x 1 (Max 16GB, optional)
Graphics
Intel® UHD 1.2GHz(Execution Units 24)
OS
Windows 10 IoT Enterprise(64bit), Windows 11 IoT Enterprise(64bit)
Display
Display
Primary Display Type
21.5" - LCD (LED Backlight) - FHD 1080x1920 Resolution / 9:16 Ratio / 300cd/m²
Touch
PCAP 10 Point Multi-touch
I/O Interfaces
I/O Interfaces
I/O Port
USB 6, LAN 1(RJ45), Serial 6(DB9*3, RJ50*2, RJ11*1)
Peripheral Options
Peripheral Options
Printer
3" Thermal Receipt Printer(Speed: 200mm/sec max. Autocut)
Card Reader (MSR / SCR)
Smart Card Reader: ISO/IEC7816 EMV Level 1
Magnetic Stripe Reader: ISO 7811 ID-1 All tracks
* Interface: USB(HID) and RS232C(COM6)
Scanner
2D Scanner
Speaker
5W (Internal Speakers)

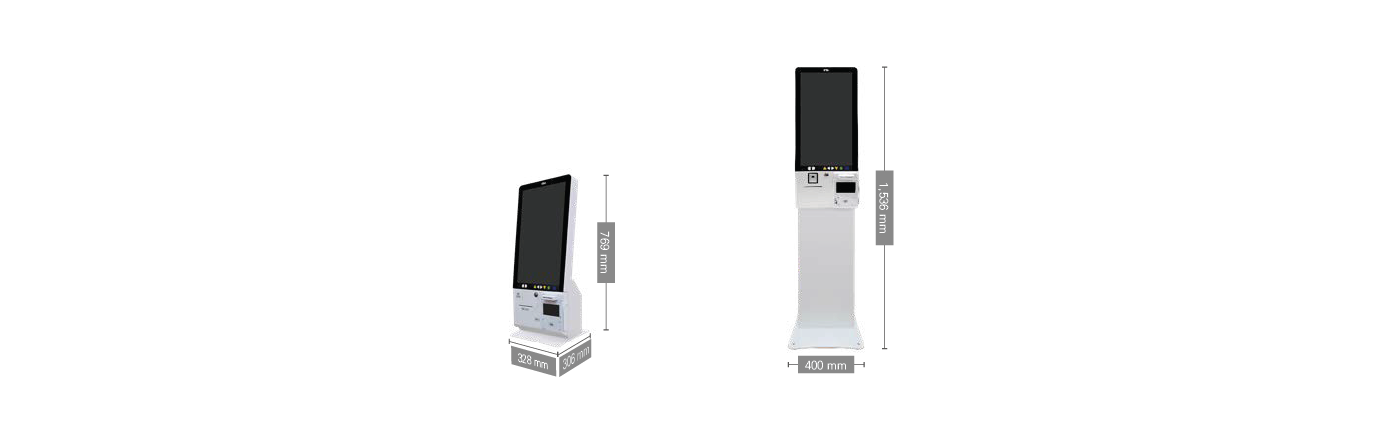

Box Dimension
Box Dimension
Dimension (W x D x H)
Desk - 860 x 400 x 290 (mm) / Stand - 850 x 465 x 290 (mm)
Weight
Desk - 18 kg / Stand - 19 kg
Environment
Power Supply
12V/5A, 24V/1.75A
Temperature
Operating Temp : 0~40℃ / Storage Temp : -20~60℃ / Humidity : 20% to 90%
Certifications
KC(R-R-P2C-KIO-K21T6B)

*Specifications are subject to change without prior notice.
*Package weight may vary depending on the model and components.



IMU_berrierfree_kiosk_T6B-21

Download

Catalog
Manual & Guide
Drivers

1. Product information can be modified to improve appearance and product performance.

2. Product specifications are subject to change without prior notice to improve performance.

3. The weight of the box varies depending on the components and the main board. (includes box weight)

4. Product images are produced for better understanding and may not be real.
