All-in-One POS Terminal

200

Designed to be user friendly

A reliable and stable POS system with excellent performance
following today’s technology trend.

    INTRODUCTION

    Merging both the KIOSK and
    POS system into one!

    The system can be used as a POS system (adjusting the screen horizontally) or
    as a KIOSK (adjusting the screen vertically), exclusively developed by IMU as “UP KIOSK.”

    KEY FEATURE 01

    MORE STABILITY AND
    A CLEARER DISPLAY

    Primary Display

    The 15” WLED is designed to adjust the displays’ brightness in real time depending on the environment to reduce eye fatigue.

    Touch

    Users familiar with smart phones will experience a smooth and stable 10-point multi-touch with accurate touch information processing due to excellent recognition.

    KEY FEATURE 02

    IMPROVED VISUAL
    SATISFACTION

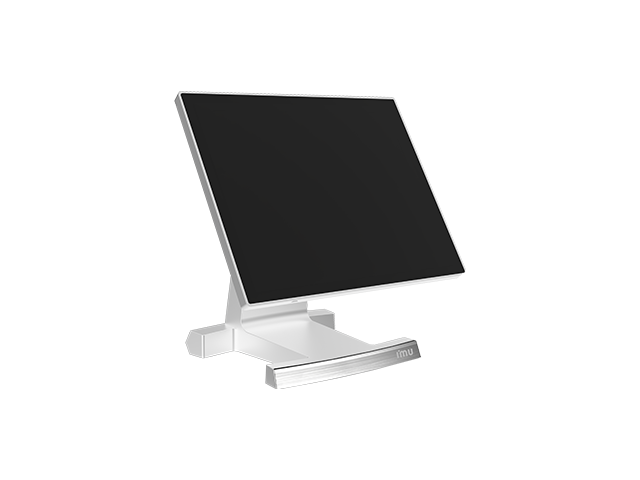

    The glass touch panel and the stand are harmonized to bring out the sophistication.

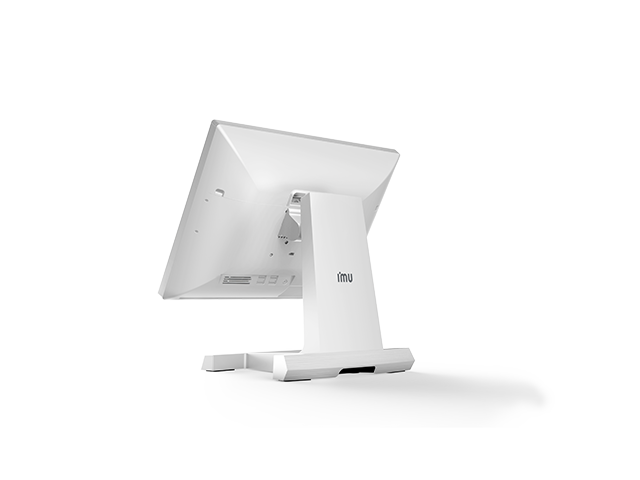

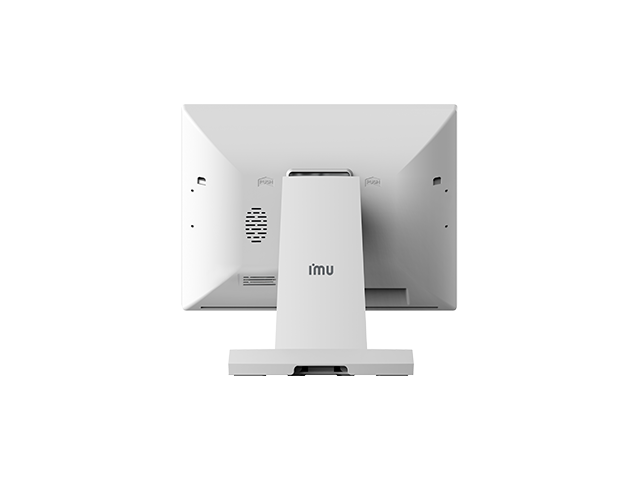

    The stand has increased visual satisfaction by applying metal to the base.
    The printer also allows you to print out logos that meet your wants and needs.

    Decobar

    KEY FEATURE 03

    EQUIPPED WITH
    A STATUS INDICATOR

    With the LED indicator, you will be able to check
    if the system is booting up correctly and troubleshoot according.

    KEY FEATURE 04

    SIMPLE STRUCTURE

    A three stage structure allows for easy disassembly and
    assembly with convenient maintenance.

    KEY FEATURE 05

    POWERFUL, HIGH-PERFORMANCE
    PROCESSORS

    Featuring Intel®'s high-performance processors (CORE™ i3/i5/i7, Celeron®),
    you get a faster, more reliable, and powerful performance.

    4GB up to 32GB

    Optional

    128GB up to 512GB

    Optional

    Windows 10 IoT

    OS

    KEY FEATURE 06

    BRINGS INNOVATIVE TECHNOLOGY
    TO YOUR FINGERTIPS

    As technology has advanced throughout the years, we have applied the technology
    that meets the needs and trends from throughout the years.

    KEY FEATURE 07

    STRENGTHEN PRODUCT RELIABILITY
    SUPER HEAT DISSIPATION FRAME DESIGN

    The overall frame design provides excellent heat conduction and heat dissipation processing capabilities. The fanless system allows for stable store operation at the lowest temperatures compared to other designs.

    KEY FEATURE 08

    SECURE AND SIMPLE STRUCTURAL
    DESIGN

    Easy optional device installation

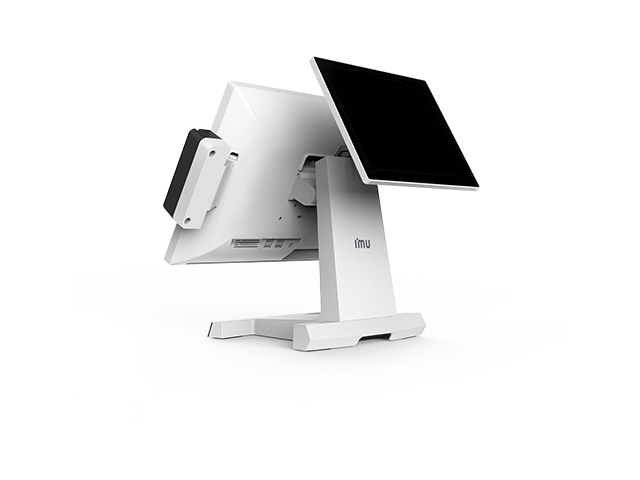

    Dual monitor compatibility

    The power cable, video cable, and touch are all merged into one cable.
    When connecting to the main body of the POS system, there is an automatic locking
    mechanism and you can press the button on the cable to release/detach the connection.
    Strong hinges and double frames have been applied to minimize shaking when the POS
    system is being used. The dual monitor can be rotated up, down, left, and right.

    * Dual hinge patent confirmed (10-2019-0119934)

    - Pocket type hinge structure designed for easy mounting of the second display monitor

    * Dual hinge design patent confirmed (30-2019-0035944)

    - To prevent design theft of the second display monitor hinge structure patent

    Glass Touch Panel

    The all-in-one glass touch panel helps keep the screen stay clean for a long time,
    prevents scratches, and reduces eye strain.

    Secure power supply
    tightening structure

    Regardless of the power cable direction, the plug type is designed to protect
    the joints and also prevents a reverse current. The power cable port
    on the board is designed to prevent the power cable from being loose and unplugged easily.

    SSD sliding structure design

    The SSD slot has a sliding structure design that allows the SSD
    to be easily replaced and is effective in preventing damage cause
    by inserting the SSD in the wrong way. The rail structure also protects
    the SSDs by absorbing vibration.

    * Patent application number: 10-2019-0158767

    - Flat-layer structure tray designed for easy SSD detachment,
    mounting, and contact failure prevention

    KEY FEATURE 09

    VARIOUS I/O INTERFACES PROVIDED
    6 SERIAL, 6 USB

    1. 01
      Industry's first multi-monitor support
      (HDMI, DVI, DisplayPort, VGA)
    2. 02
      Power all serial ports
      (Powered Serial)
    3. 03
      Supports multiple forms of Serial Port
      (DB9, RJ45/50)
    • Upper I/O Interfaces
    • Lower I/O Interfaces

    Display Options

    YOU CAN SELECT AND USE VARIOUS COMBINATIONS

    OPTION 01

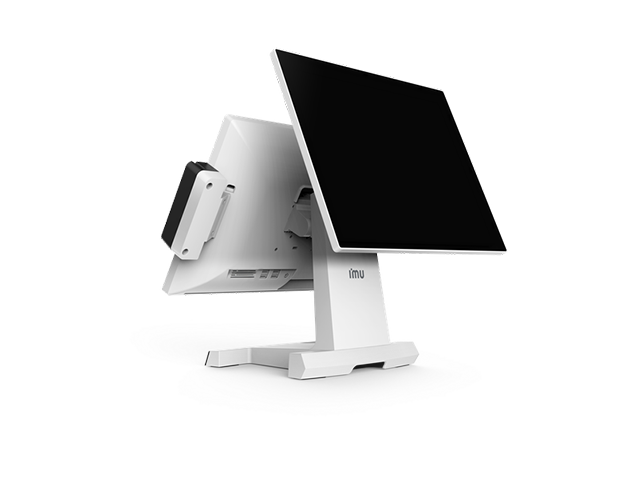

    Main Display + Secondary Display
    • 15” + 15”
    • 15” + 9.7”
    • 15”

    You can also select the classic dark gray color.

    Beyond the default black color, we adopted IMU’s luxurious color called dark gray.

    Peripheral Options

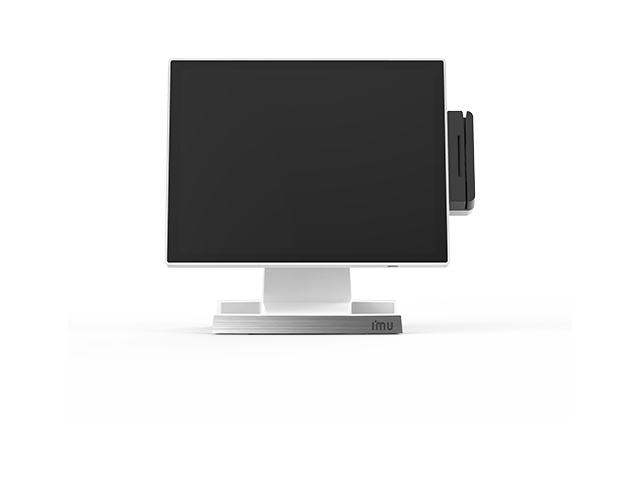

    MSR

    · Simple assembly allows you to select left
    and right installation

    VFD

    20 columns × 2 lines

    Alphabet & Numeric

    SOLUTIONS

    Different UP solutions for your store

    The program can be configured according to the store’s concept and the user friendly UI provides a quick operation
    from an order being placed to payment. Multiple languages are supported and local businesses can also be linked.

    UP SOLUTIONS

    Specifications

    N-200
    System
    System
    Processor
    Intel® Processor N97, up to 3.60 GHz(Fanless)
    Chipset / BIOS
    Intel® Alder Lake-N SoC / AMI UEFI
    Storage
    2.5" SATA III SSD 128GB (SSD 256/512GB, optional)
    Memory
    4GB SO-DIMM
    DDR4 3200MHz x 1 (Max 16GB, optional)
    Graphics
    Intel® UHD Graphics
    OS
    Windows 10 IoT Enterprise(64bit), Windows 11(64bit)
    Display
    Display
    Primary Display Type
    15" LED Backlight (1024 x 768 Resolution)
    Touch
    PCAP 10 Point Multi-touch
    I/O Interfaces
    I/O Interfaces Rear Top & Bottom Ports
    USB
    2 x USB 2.0 (Rear Top x 2), 1 x USB 2.0 (RJ11), 4 x USB 3.0 (Rear Bottom x 4)
    Serial
    6 (DB9 x 3, RJ50 x 2, RJ11 x 1)
    Audio
    1 x Audio-out / 3.5mm
    Extend Displays
    1 x DP output
    LAN
    1 x RJ45 (Base-T 10,100,1000m/bps Ethernet)
    Speaker
    1 x 3W
    Peripheral Options
    Peripheral Options
    Secondary Display
    • LCD Type: 9.7" or 15" LCD (USB Port x 1)
    • Touch Monitor: 9.7" or 15" LCD with Capacitive Touch (USB Port x 1)
    - by single cable(no power & USB cable)
    Customer Display (CDP)
    FSTN LCD Type(20 columns x 2 lines)
    Card Reader (MSR / SCR)
    Smart Card Reader: ISO/IEC7816 EMV Level 1 / Magnetic Stripe Reader: ISO 7811 ID-1 All
    tracks *Interface: USB(HID) and RS232C(COM6)
    Dallas Reader
    Dallas Reader(i-button): 6 characters / prefix and suffix
    *Interface: USB(HID) and RS232C(COM6)

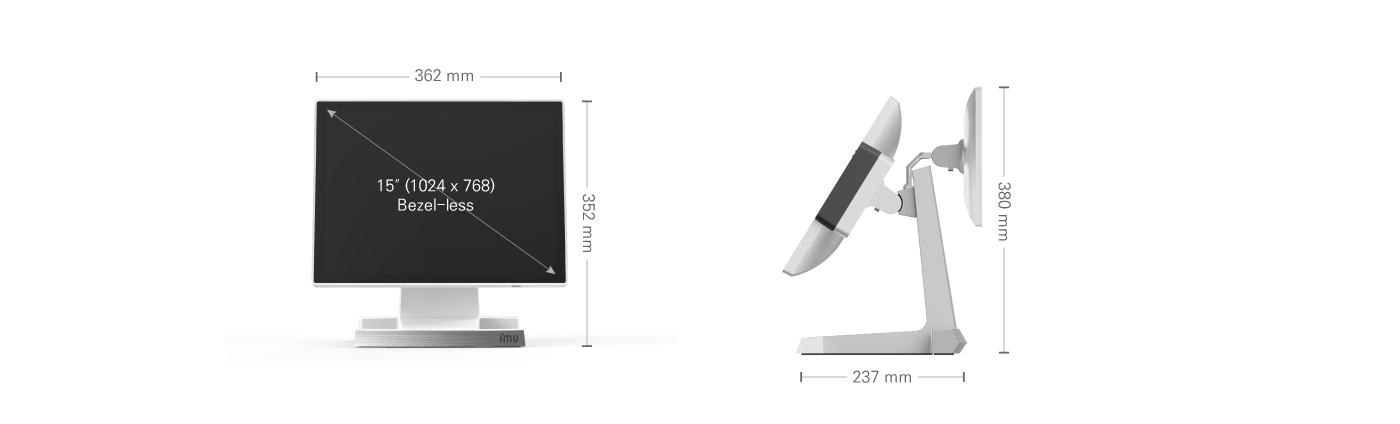

    Physical Dimension
    Physical Dimension
    Dimension (W x D x H)
    362 x 237 x 352 (mm)
    Weight
    5.0 kg
    Box Dimension
    Box Dimension
    Dimension (W x D x H)
    430 x 290 x 430 (mm)
    Weight
    6.5 kg
    Environment
    Environment
    Power Supply
    DC 12V/5A (AC 100V~240V, 60W)
    Temperature
    Operating Temp : 0~40℃ / Storage Temp : -20~60℃ / Humidity : 10% to 90%
    Certifications
    CE, FCC, KC

    *Specifications are subject to change without prior notice.



    Download

    Catalog
    • 200(N97) - better heat dissipation
      v1.3(202507) ENG 0.9MB 20250701

      Download
    • 200 POS SYSTEM
      v05EN(202411) ENG 5.2MB 20241119

      Download
    Manual & Guide
    • S200_S200AL_E200_N200 Installation Guide
      Rev. 1.3EN(202407) ENG 2.0MB 20230802

      Download
    Drivers

    1. Product information can be modified to improve appearance and product performance.

    2. Product specifications are subject to change without prior notice to improve performance.

    3. The weight of the box varies depending on the components and the main board. (includes box weight)

    4. Product images are produced for better understanding and may not be real.
