SCO l Self-Checkout

KIOSK 15" / 21.5"

SCO
SELF-CHECKOUT COUNTER

SCO(Self Check Out) is a product using the IMU POS platform that is stable.
A self-checkout desk where customers are able to bring their purchases to the barcode reader
and pay for themselves.

SPECIFICATION

Intel J6412

CPU
4GB

MEMORY
128GB

SSD
Windows 10 IoT

OS

USER FRIENDLY KIOSK

Capacitive touch technology delivers a smooth and stable 10-point multi-touch,
with a larger bezel-less display. Depending on the store environment,
you can choose between the desk type or stand type.

* The desk/stand types are essential parts of the KIOSK

KEY FEATURE

Easy to adjust the monitor’s angle
with display hinges

* SCO21 (21.5" display type)

KEY FEATURE

The aluminum frame design is optimized for heat dissipation for the CPU

* SCO21 (21.5" display type)

Aluminum frame
Heat sink is located at the back

KEY FEATURE

POS 100% SAFETY AND FEATURES

* SCO15 (15" display desk type)

Secure power supply tightening structure

· Reverse current protection design (fundamentally blocking board
impact through reverse current)

· Strong locks that won’t come out easily

· Application of plug type regardless of direction of power cable

HW equipped with an LED status indicator

Glass Touch Panel

SSD sliding structure design

· The SSD sliding structure design enables easy SSD replacements

· Prevents damage from sliding in the SSD bracket the wrong way

· The rail structure design enables vibration absorption to protect the SSD

KEY FEATURE

PRODUCT DESIGN REDUCES
MAINTENANCE COSTS

Receipt paper and
module replacement is
fast and easy
SSD replacement is
easy to attach/detach
Easily replace
the main body and
scanner module

SOLUTION

SCO delivers optimized solutions

Self-developed SCO solutions are used in various stores and provides
the necessary unmanned payment system functions in small stores.

※ UP KIOSK license is provided for free when purchased the P2C SCO

UP SOLUTIONS

UTILIZATION

SCO EXTENSIVE UTILIZATION

15"
15"
21.5"
21.5"

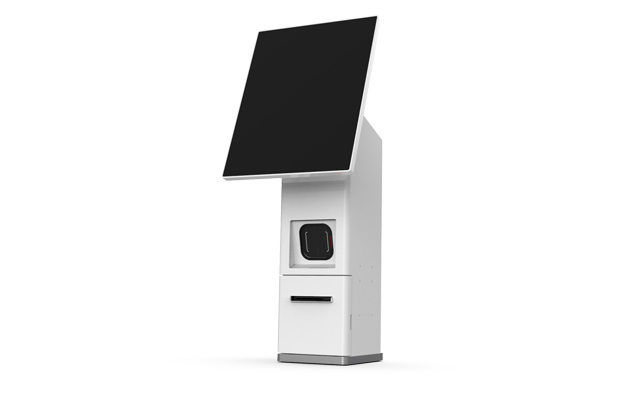

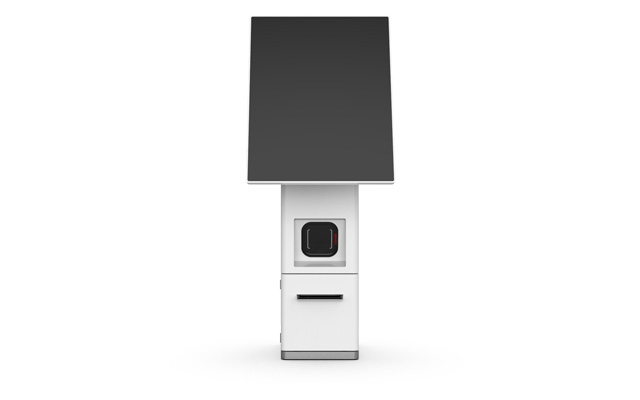

15” SCO Desk Type

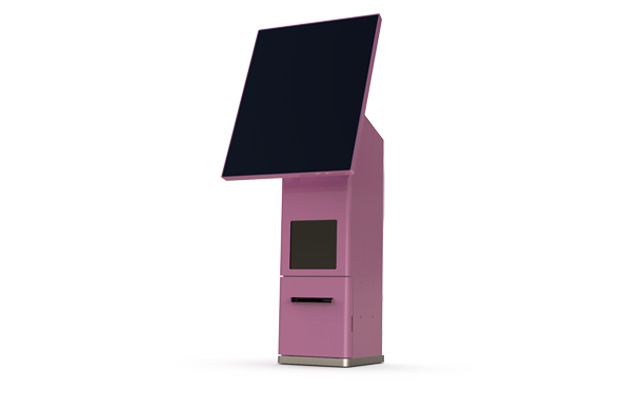

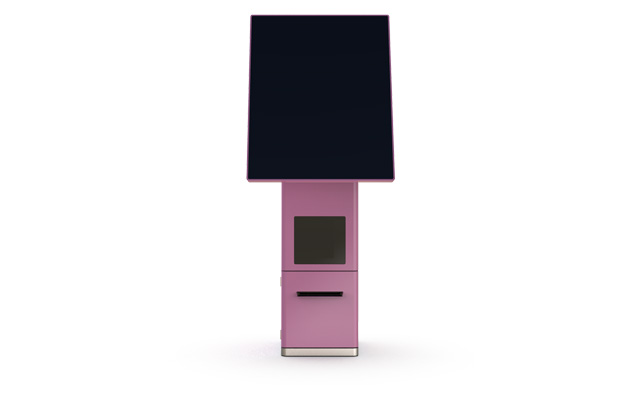

Change the color
Excluding scanners
Default MOQ

15” SCO Desk Type + Cash Kiosk

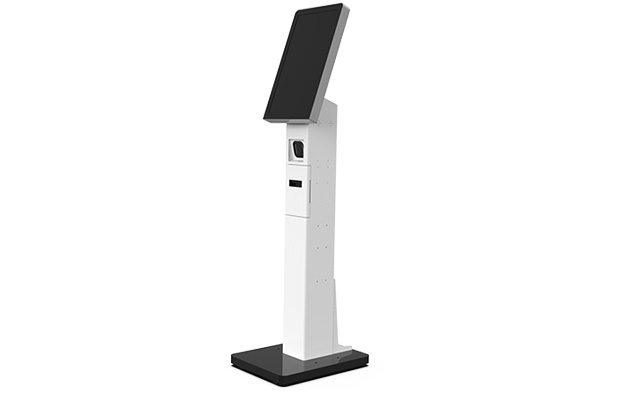

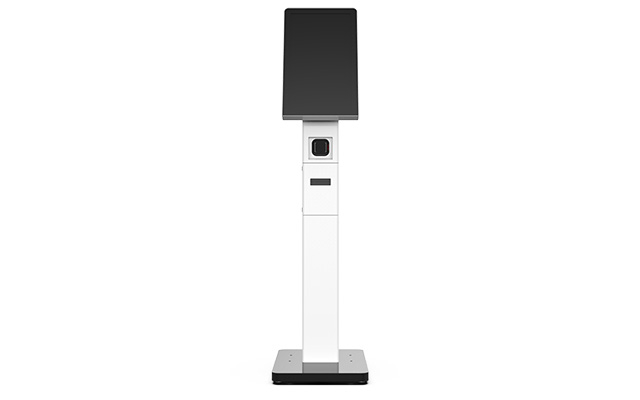

21.5” SCO Kiosk Type

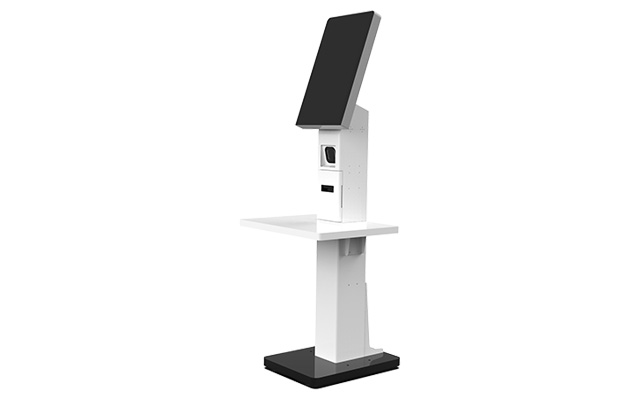

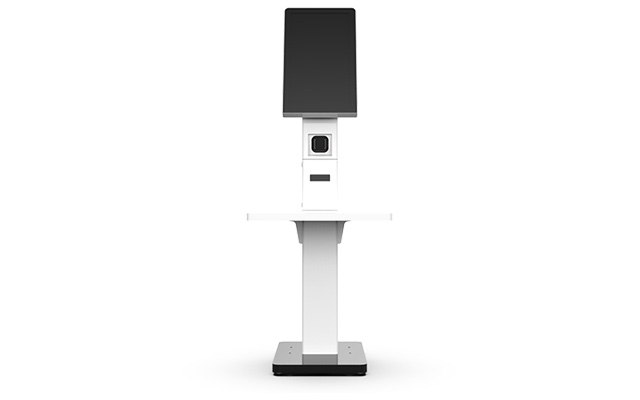

21.5” SCO Market Type

Equipment Options

01

Hand Scanner Holder
(Angle Adjustable)
02

180° Fixed Scanner
(MG1500)
03

Thermal Printer
(Desk)
04

Thermal Printe
(Stand)
05

Multi-pad/Integrated Dongle
06

Product Table
07

IC Reader

Display Options

YOU CAN SELECT AND USE VARIOUS COMBINATIONS

Display Options

YOU CAN SELECT AND USE VARIOUS COMBINATIONS

15”
LED Backlight Display, 768 x 1024
*200K Base Model
21. 5”
LED Backlight Display, FHD 1080 x 1920
*21.5” Slim KIOSK Base Model

Specifications

SCO21 (21.5")

Environment
Main Unit
Main Unit	CPU Intel® Core™ i3/i5/i7 (Fanless) Intel® Celeron® Quad-core Processor J4125 2.0GHz/2.7GHz (Fanless) Intel® Celeron® Quad-core Processor J6412 2.0GHz/2.6GHz(Fanless)
	Memory DDR4 4GB
	Storage SSD 128GB
	OS Windows 10 IoT Value (64bit)
	Display / Touch 21.5" LED Backlight Display (FHD, 1080 x 1920) PCAP 10 Point Multi-touch
	I/O Port 6 Serial (DB9 x 3, RJ50(RJ45) x 2, RJ11 x 1) 6 USB(3.0), 1 Parallel, Audio, 1 Ethernet (10/100/1000), 1 Display Port
	Speaker Internal Speakers
Peripherals
Peripherals	180° Fixed Scanner MG1500i (Datalogic Magellan) 1D/2D Fixed Barcode Scanner Interface : USB or RS-232 LED Aimer for Precision Scanning Resolution : 0.130mm/5mils
	Hand Scanner (Optional) QuickScan QD2500 2D (Datalogic) 1D/2D Hand Scanner Interface : USB or RS-232
	Thermal Printer (Desk) WSP-CP383 Speed 200mm/sec \| Resolution 203dpi Interface : RS-232 \| Auto-Cutter
	Thermal Printer (Stand) SRP-E300 Speed 220mm/sec \| Resolution 203dpi Interface : RS-232 \| Auto-Cutter

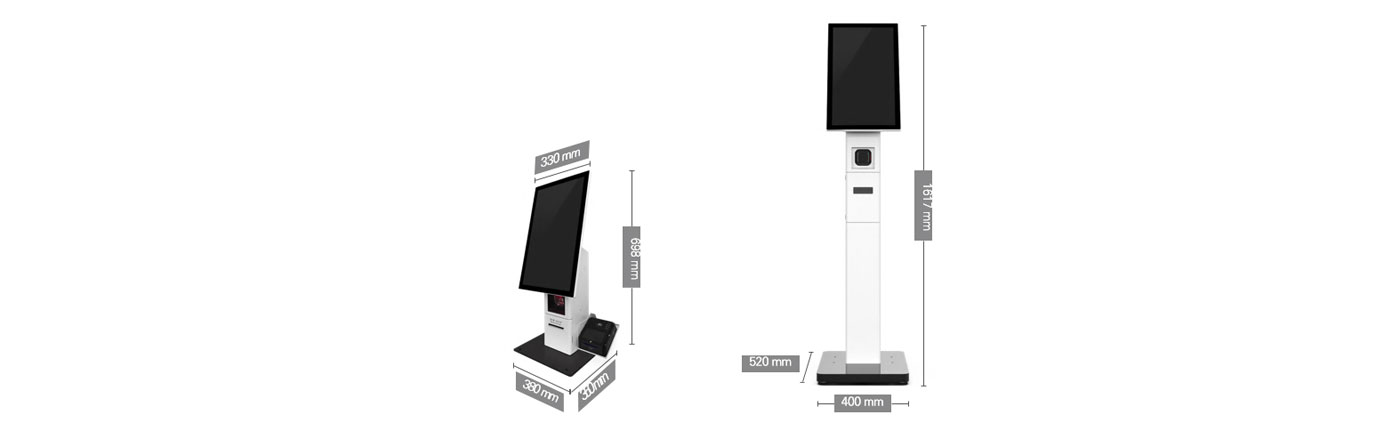

Physical Dimension
Physical Dimension	Dimension (W x D x H) Desk Type 460 x 350 x 899 (mm/Add bottom plate) Stand Type 400 x 520 x 1,586 (mm/Excluding shelves)
Environment
	Power Supply DC 12V/5A (AC 100V~240V, 60W)
	Temperature Operating Temp: 0 ~ 40℃ / Storage Temp : -20~60℃ / Humidity: 10% to 90%
	Certifications CE, FCC, KC
